Parte: Bastidor delantero

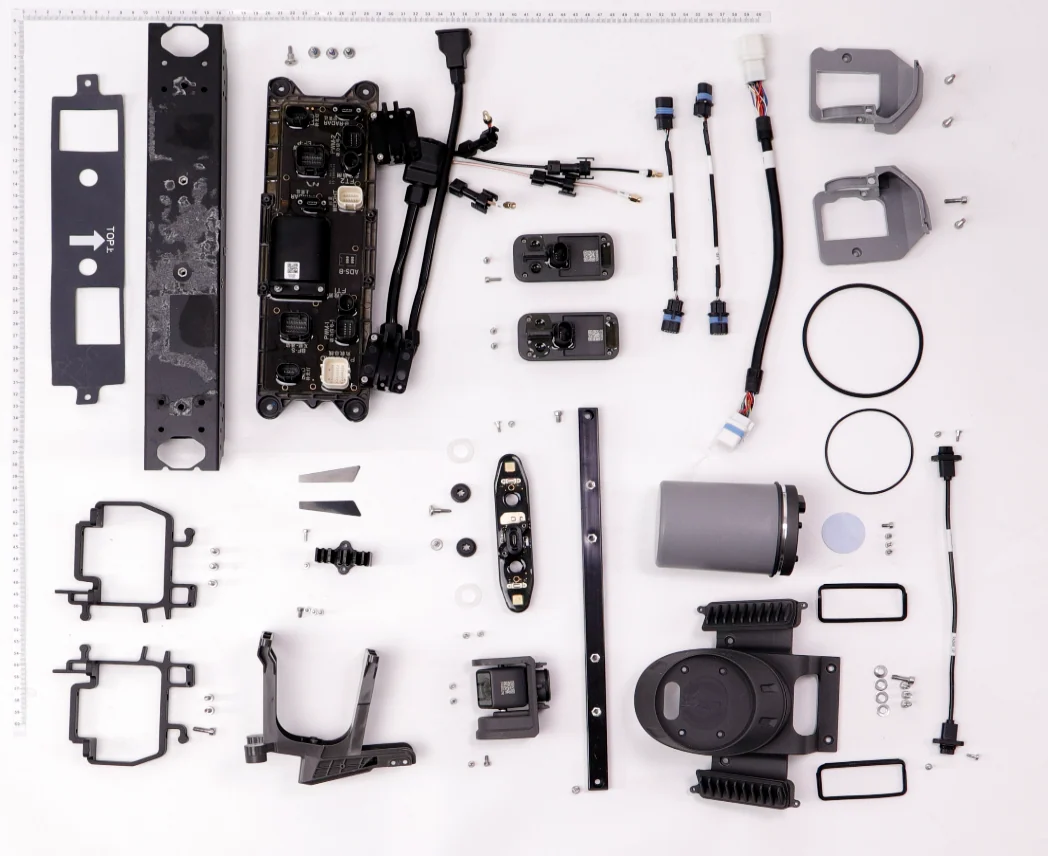

DJI Agras T40 — 43 piezas identificadas con su código de parte oficial DJI. Toque un número del diagrama para ver de qué pieza se trata, y abra la ficha para ver precio y compatibilidad.
Pase el cursor sobre un número —o tóquelo— para ver la pieza. También puede recorrer la tabla.
Piezas de este conjunto
| N.º | Código DJI | Repuesto | Nombre técnico | Precio ref. |
|---|---|---|---|---|
| 1 | YC.ST.LL000226 | Perno M30-HC01450080-100020-5103-Y | M30-HC01450080-100020-5103-Y | $4.00 |
| 2 | BC.AG.SS000576 | Tubo de Aluminio Delantero - T40/T20P | Front Frame Aluminum Tube | $85.00 |
| 3 | YC.JG.MQ001382 | Lamina de Aislamiento - T40/T20P | Front Frame Insulation Sheet | $10.00 |
| 5 | YC.WJ.L00871 | Tornillo M30-HC100100-55-85 | Screw M30-HC100100-55-85 | $3.00 |
| 6 | YC.WJ.L01549 | M25-HC060060-45-85 | M25-HC060060-45-85 | $3.00 |
| 7 | YC.JG.MY000719 | Anillo Sellado del Sensor Binocular T40 | Dual Vision Sensors Sealing Ring | $3.50 |
| 8 | YC.JG.MY000380 | Almohadilla -T30 | Damping Pad | $4.52 |
| 9 | YC.ST.LL000226 | Perno M30-HC01450080-100020-5103-Y | M30-HC01450080-100020-5103-Y | $4.00 |
| 10 | YC.JG.MQ001384 | Sticker Rh Soporte de Cámara FPV - T40/T20P | FPV Bracket Decorative Piece (Right) | $6.00 |
| 11 | YC.JG.MQ001383 | Sticker Lh Soporte de Cámara FPV - T40/T20P | FPV Bracket Decorative Piece (Left) | $6.00 |
| 12 | YC.JG.QX002208 | Soporte de Carcasa Delantera Rh - T40 | Front Shell Bracket (Right) | $30.00 |
| 13 | YC.ST.LL000235 | Perno 057030-5103-N T40/T20P | T30-HC00800080-057030-5103-N | $3.39 |
| 14 | YC.JG.ZS002455 | Clip de Cable Motor - T40 | Propulsion Cable Clip | $6.00 |
| 15 | YC.WJ.L00870 | Tornillos M30-HC060060-55-85 - T30/T10 | Screw M30-HC060060-55-85 | $3.39 |
| 16 | YC.WJ.L00870 | Tornillos M30-HC060060-55-85 - T30/T10 | Screw M30-HC060060-55-85 | $3.39 |
| 17 | YC.JG.ZS002279 | Base de Cámara FPV - T40 | FPV Bracket | $40.00 |
| 18 | YC.ST.LL000013 | Tornillos M40-HC01400140-070039-0003-Y - T30/T10 | Screw M40-HC01400140-070039-0003-Y | $3.39 |
| 19 | YC.JG.QX002209 | Soporte de Carcasa Delantera Lh - T40 | Front Shell Bracket (Left) | $30.00 |
| 20 | BC.AG.SS000549 | Cámara FPV - T40 | FPV Module | $776.31 |
| 21 | YC.WJ.L00870 | Tornillos M30-HC060060-55-85 - T30/T10 | Screw M30-HC060060-55-85 | $3.39 |
| 22 | YC.WJ.L00876 | Perno de Tarjeta de Tanque T40 | Screw M40-HC060060-55-85 | $3.39 |
| 23 | YC.JG.QX002207 | Soporte de Base de Radar Omnidireccional T40 | Radar Crossbeam | $30.00 |
| 24 | YC.JG.MY000691 | Empaque Termico Radar Omnidireccional T40 | Omnidirectional Radar Fixing Base_Heat Sink Part Sealing Ring | $4.50 |
| 25 | YC.ST.LL000122 | M25-HC00780040-055020-5103-N | Screw M25-HC00780040-040020-5108-N | $3.00 |
| 26 | YC.JG.YZ000498 | Base de Radar Omnidireccional - T40 | Omnidirectional Radar Fixing Base | $65.00 |
| 27 | YC.ST.LL000013 | Tornillos M40-HC01400140-070039-0003-Y - T30/T10 | Screw M40-HC01400140-070039-0003-Y | $3.39 |
| 29 | YC.JG.MY000691 | Empaque Termico Radar Omnidireccional T40 | Omnidirectional Radar Fixing Base_Heat Sink Part Sealing Ring | $4.50 |
| 30 | YC.XC.XX000844 | Cable de Señal de Radar Omnidireccional T40 | Omnidirectional Radar Signal Cable | $20.00 |
| 31 | YC.JG.MQ000710 | Almohadilla Térmica de Radar T40 | Radar Fixing Base Thermal Pad | $4.50 |
| 32 | YC.WJ.L00870 | Tornillos M30-HC060060-55-85 - T30/T10 | Screw M30-HC060060-55-85 | $3.39 |
| 33 | BC.AG.SS000551 | Módulo de Radar Omnidireccional - T40 | Omnidirectional Radar Module (Including Signal Cable) | $990.00 |
| 34 | YC.JG.MY000746 | Oring de Radar Omnidireccional Externo T40 | Radar Hood Sealing Ring (Outer) | $6.00 |
| 35 | BC.AG.SS000562 | Módulo de Visión Delantero T40/T20P | Forward Vision Sensor Module | $261.03 |
| 36 | YC.JG.MY000745 | Oring de Radar Omnidireccional T40 | Omnidirectional Radar Fixing Base Sealing Ring | $4.00 |
| 37 | BC.AG.SS000548 | Módulo LED Inferior con Cable - T40 | Auxiliary Bottom Light Module (Including Signal Cable) | $168.37 |
| 38 | YC.JG.ZS002476 | Soporte de Cable Delantero Lh - T40 | Front Frame Cable Bracket (Left) | $15.00 |
| 39 | YC.ST.LL000013 | Tornillos M40-HC01400140-070039-0003-Y - T30/T10 | Screw M40-HC01400140-070039-0003-Y | $3.39 |
| 40 | YC.XC.XX000853 | Cable de Señal de Luz Auxiliar - T40/T20P | Auxiliary Bottom Light Signal Cable | $35.00 |
| 41 | YC.XC.XX000842 | Cable de Tanque - T40 | Spraying Adaptive Cable | $68.93 |
| 42 | YC.JG.ZS002415 | Soporte de Cable Delantero Rh - T40 | Front Frame Cable Bracket (Right) | $15.00 |
| 43 | YC.JG.ZS002304 | Brazo Lateral - T40/T20P | Side Arm | $4.50 |
| 44 | YC.ST.LL000228 | Perno M20-PC00400040-040010-5103-Y | M20-PC00400040-040010-5103-Y | $3.39 |
| 45 | YC.JG.QX002407 | Soporte Mejorado - T40/T20P | Enhanced Supporting Piece | $8.00 |
