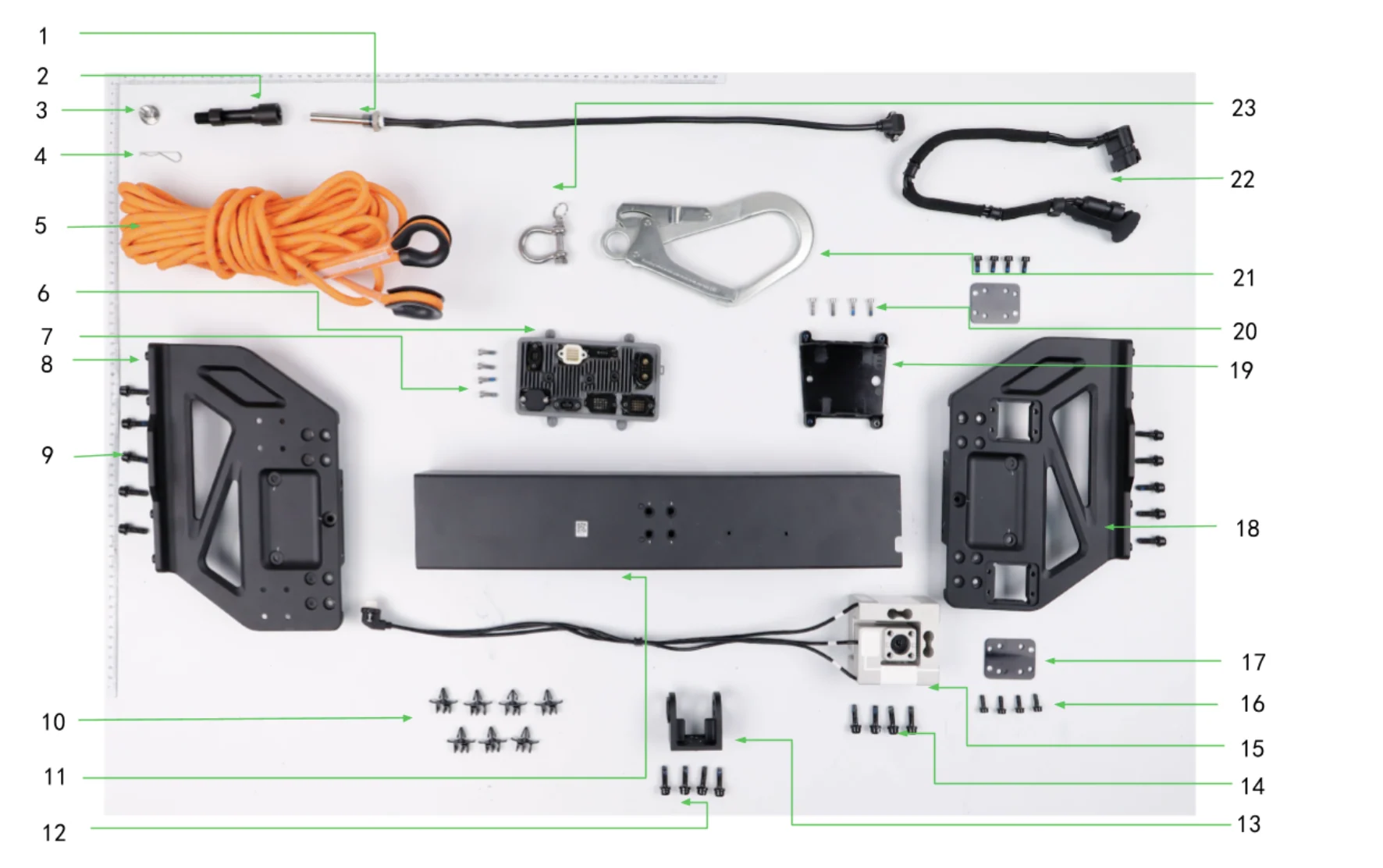

Parte: Sistema de elevación
DJI Agras T100 — 23 piezas identificadas con su código de parte oficial DJI. Busque el número en la tabla, y abra la ficha para ver precio y compatibilidad.
Piezas de este conjunto
| N.º | Código DJI | Repuesto | Nombre técnico | Precio ref. |
|---|---|---|---|---|
| 1 | YC.DZ.HF000018 | Fuse | — | Consultar |
| 2 | YC.JG.QX005096 | Fuse Housing | — | Consultar |
| 3 | YC.JG.QX004654 | Tuerca de Fijación del Brazo de la Aeronave | Aircraft Arm Fixing Nut | $4.52 |
| 4 | YC.JG.TT000313 | R-Type Pin | — | Consultar |
| 5 | YC.ST.AS000071 | Cuerda de Elevación | Lifting Rope | $41.81 |
| 6 | BC.AG.SS001192 | Payload Lifting Control Module | — | Consultar |
| 7 | YC.ST.LL000013 | Tornillos M40-HC01400140-070039-0003-Y - T30/T10 | Screw M40-HC01400140-070039-0003-Y | $3.39 |
| 8 | YC.JG.YZ001164 | Lift System Right Bracket | — | Consultar |
| 9 | YC.ST.LL000696 | Tornillo (M60-HC02000180-100080-4203-Y) | Screw (M60-HC02000180-100080-4203-Y) | $3.50 |
| 10 | YC.JG.ZS008368 | Abrazadera para Cables | Cable Clamp | $4.00 |
| 11 | YC.JG.QX005355 | Lift System Crossbeam | — | Consultar |
| 12 | YC.ST.LL000696 | Tornillo (M60-HC02000180-100080-4203-Y) | Screw (M60-HC02000180-100080-4203-Y) | $3.50 |
| 13 | YC.JG.QX005095 | Fuse Base | — | Consultar |
| 14 | YC.ST.LL000696 | Tornillo (M60-HC02000180-100080-4203-Y) | Screw (M60-HC02000180-100080-4203-Y) | $3.50 |
| 15 | BC.AG.SS001196 | Módulo Sensor de Fuerza de Tres Ejes | Three-Axis Force Sensor Module | $187.58 |
| 16 | YC.ST.LL000697 | Tornillo (M40-HC03800090-135020-5103-Y) | Screw (M40-HC03800090-135020-5103-Y) | $3.50 |
| 17 | YC.JG.QX004865 | Deflector de Viga del Cabrestante | Winch Beam Baffle | $5.00 |
| 18 | YC.JG.YZ001163 | Soporte Izquierdo del Sistema de Elevación | Lift System Left Bracket | $53.11 |
| 19 | YC.JG.ZS008168 | Lift System Control Board Bracket | — | Consultar |
| 20 | YC.ST.LL000013 | Tornillos M40-HC01400140-070039-0003-Y - T30/T10 | Screw M40-HC01400140-070039-0003-Y | $3.39 |
| 21 | YC.ST.AS000061 | Gancho de Elevación | Lifting Hook | $45.48 |
| 22 | YC.XC.DD000815 | Cable Adaptador de Carga Útil | Payload Adapter Cable | $60.00 |
| 23 | YC.ST.AS000051 | Gancho Amortiguador | Damper Hook | $5.20 |
